- Insulate exterior wall cavity continuously.
- Insulate floor/ceiling edge where it meets the outside wall.
- Keep insulation aligned with conditioned space boundary.
- Insulate roof slope and knee wall.
- Block airflow at soffit with baffles.
- Floor of attic/knee area needs insulation if space is unconditioned.
- Insulate wall cavity fully.

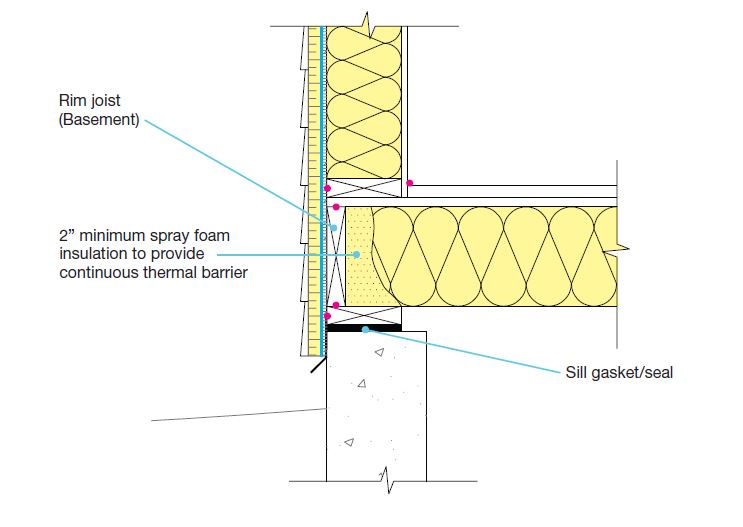

- Seal rim/sill plate area tightly.
- Maintain continuous air/vapor barrier at foundation joint.

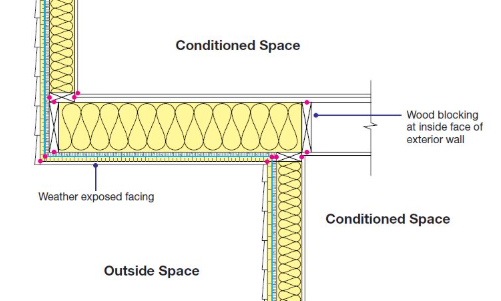

- Insulate wall between house and garage.
- Ceiling above garage needs full insulation.
- Seal edges to prevent air leakage.

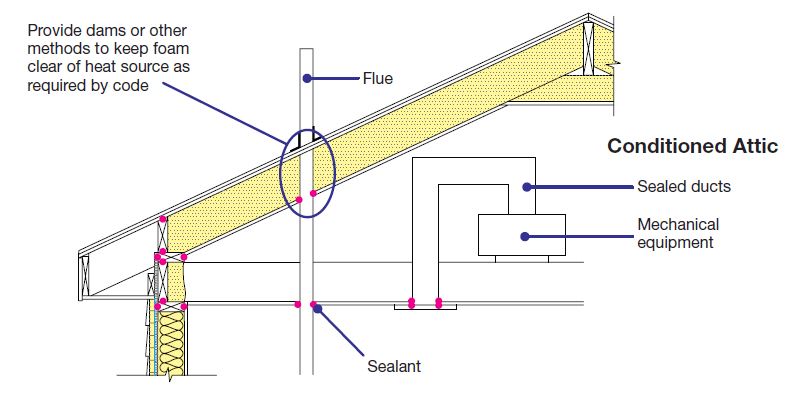

- Insulate roof/ceiling over living area.
- Insulate vertical wall cavity below.
- Air-seal soffit and any recessed fixtures.
- Continuous insulation along roof line.
- Seal around penetrations (flue/vents).
- Maintain uninterrupted thermal barrier at wall-to-roof joint.

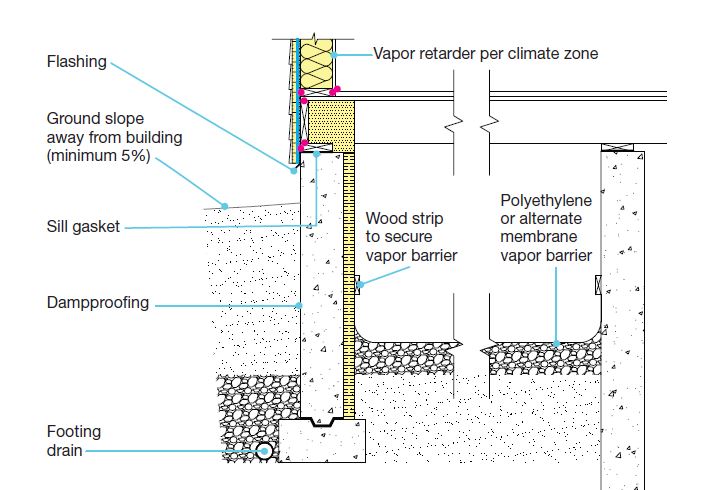

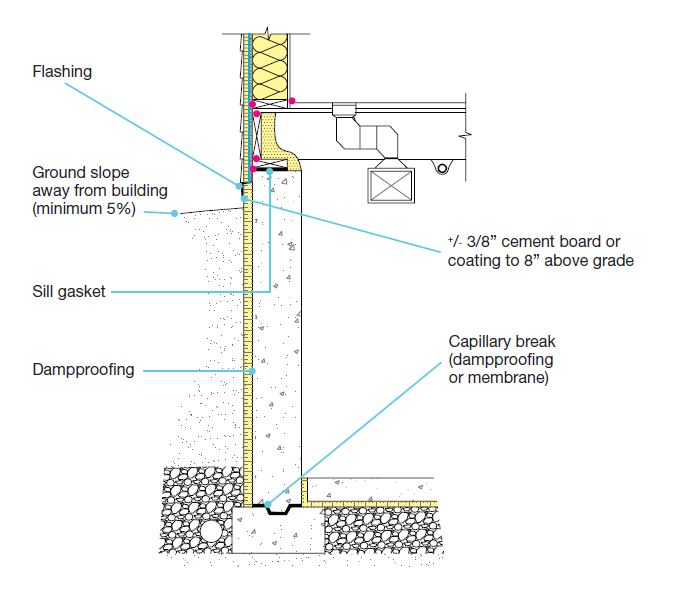

- Vertical insulation along foundation wall.
- Extend insulation below grade to footing top.
- Seal slab edge + vapor barrier connection.
- Insulate slab edge continuously downward.
- Wall cavity insulation above slab line.
- Vapor barrier placed under slab/inside wall.
- Exterior foundation wall insulation full height.
- Maintain vapor barrier continuity at wall/slab.
- Seal rim/top plate area to stop air leakage.
